The global drone landscape is undergoing a quiet but profound transformation. What began as a pursuit of unrestricted aerial freedom is maturing into a framework of profound responsibility. Emerging regulations, particularly those mandating safety parachutes for drones above a certain weight, are not merely bureaucratic hurdles. They represent a collective awakening—a recognition that the sky is a shared space. For the serious pilot, compliance ceases to be an obligation and becomes a mark of craftsmanship. Selecting a recovery system is no longer about checking a box; it is the most critical decision in preparing your aircraft for a safe flight. It is the choice to become a guardian of your equipment, the environment, and the public trust. This article delves into the nuanced world of drone parachutes, guiding you through this essential choice with a focus on a meticulously crafted system designed for drones weighing 4-8kg.
At the core of any reliable recovery system lies the parachute itself—a deceptively simple device where every stitch and specification carries weight. We examine a system engineered for the 4-8kg drone class, available in two optimized variants: one for 4-6kg and another for 6-8kg. This is not a one-size-fits-all solution, but a calibrated tool.
Key Specifications & Craftsmanship:
Canopy Fabric: High-density, ripstop nylon. This material is chosen for its exceptional strength-to-weight ratio, tear resistance, and rapid deployment characteristics.
Construction: Each unit is assembled by hand. This artisanal approach allows for meticulous attention to detail in sewing and rigging, though it naturally introduces minor, inconsequential variances in parameters—a testament to its human-made quality rather than robotic assembly.

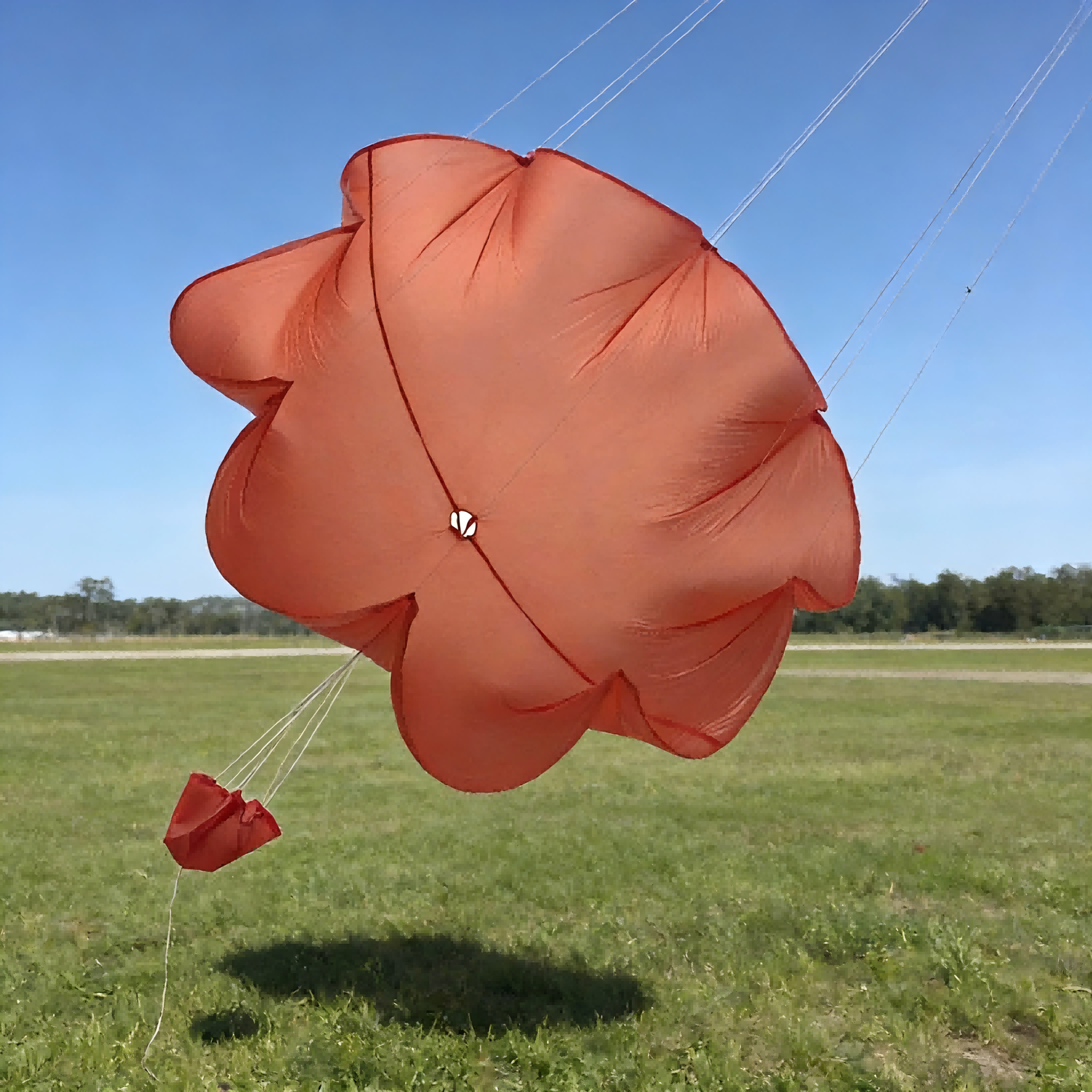

Deployment Mechanics: The system utilizes a two-stage design. A small, 60cm pilot chute extracts first, ensuring clean and reliable extraction of the 2-meter main canopy even at lower altitudes or slower speeds.
Performance: Engineered for a controlled descent of 2-4 meters per second, this rate prioritizes a survivable impact for sensitive onboard electronics like gimbals and sensors. The specified minimum deployment altitude of 15-20 meters provides a critical safety buffer for the system to fully inflate and stabilize.
The division into two weight classes is fundamental, not arbitrary. Here’s why matching your drone’s maximum takeoff weight (MTOW) to the correct variant is non-negotiable:
For the 4-6kg Variant: This is the precision instrument. Using it on a drone at the top of its range (e.g., 5.8kg) ensures a slightly faster descent, which can be advantageous in windy conditions to reduce drift. However, deploying it on a drone significantly under 4kg is inefficient and can lead to excessive pendulum motion during descent.
For the 6-8kg Variant: This variant is built with more robust materials and a slightly different canopy geometry to handle greater kinetic energy. Using it on a heavier drone ensures the descent speed remains within the safe, sub-4m/s threshold. Crucially, using the 4-6kg variant on a 7kg drone is a critical failure point; the canopy may fail, or the descent velocity will be dangerously high, turning a safety device into a liability.
Optimized Material Science: The choice of premium nylon ripstop is a calculated one. It balances minimal packed volume with maximum durability, resisting snags and abrasion during deployment in complex environments—a common weakness in cheaper, polyester-based alternatives.
The Pilot Chute Advantage: The dedicated 60cm pilot chute is a key reliability feature. It ensures positive initiation of the deployment sequence, drastically reducing the risk of "lining" or main canopy hesitation, which are leading causes of parachute failure in emergency scenarios.
Controlled Descent for Equipment Salvation: A 4m/s impact is vastly different from a 9m/s freefall. This system is engineered not just to save the airframe, but to protect the valuable and often fragile payload—be it a high-end camera, LiDAR sensor, or specialized mapping equipment. It protects your financial investment.
Handcrafted Integrity: In a world of mass production, hand assembly means each connection point, stitch line, and reinforcement patch is visually inspected and tested by a craftsman. This human touch often translates to higher initial quality control and an intuitive understanding of stress points that machines can overlook.
No system is perfect, and an honest evaluation is essential. This parachute system excels in its core mission but comes with trade-offs familiar to the industry:
Added Weight and Drag: The packed parachute, its firing mechanism, and mounting bracket add mass and alter the drone's aerodynamics, marginally reducing flight time and handling crispness—a universal sacrifice for safety.
The Complexity of Integration: Proper installation is not trivial. It requires secure mechanical mounting, careful routing of the lanyard to avoid propellers or sensors, and rigorous testing of the ejection sequence. It is an engineering task.
One-Time-Use Deployment: Like an airbag, it is designed for a single, definitive emergency event. After deployment, repacking requires specific knowledge and time, and the system must be inspected for any stress damage.
Altitude Awareness: The 15-20m minimum altitude requirement demands pilot vigilance. A failure at 10 meters renders the system ineffective, reinforcing that it is a last-resort safety net, not a substitute for prudent flying.
The market for drone safety parachutes is diverse, ranging from ultra-lightweight FPV systems to heavy-lift industrial solutions. A brief competitive analysis highlights key differentiators:
Against Ultra-Lightweight Competitors (e.g., FPV-focused brands): Many competitors in this space prioritize minimal weight for racing drones, often using thinner fabrics and simpler, single-canopy designs. Our featured system, with its pilot chute and robust nylon, is inherently more reliable for heavier, more expensive photography or commercial drones but is consequently heavier.
Against "One-Size-Fits-All" Systems: Some brands offer a single parachute rated for a wide range (e.g., 2-10kg). While convenient, physics dictates that such a parachute will be dangerously fast for a 10kg drone or overly bulky and draggy for a 2kg one. Our dedicated 4-6kg and 6-8kg variants represent a more performance-oriented, physically honest approach.
Against Automated Deployment Systems: Some high-end competitors integrate sophisticated altimeters and flight controllers for automatic deployment. The system discussed here is typically manually triggered or integrated with drone failsafes (like signal loss). It offers exceptional mechanical reliability but requires a pre-configured electronic trigger or pilot action for activation.
Selecting the right parachute is a systematic process. Ask yourself these questions:
What is my drone's true all-up weight? Weigh it fully loaded with battery, payload, and all accessories. Do not guess. This number dictates your choice between the 4-6kg and 6-8kg variants.
What is my primary risk scenario? Is it a propulsion failure over a crowded urban site, a battery failure over water, or a loss of link in a forest? The environment dictates how critical factors like descent control (to minimize drift) and rapid, reliable deployment are.
What is my technical comfort level? Are you prepared to properly install, wire, and test the system? If not, factor in the cost of professional installation.
What is the value I'm protecting? Beyond the drone's cost, consider the value of the data on board, the cost of a potential accident, and the reputational damage of a safety incident. A parachute is ultimately insurance.
In the end, equipping your drone with a system like this high-quality nylon parachute is a definitive statement. It moves beyond basic compliance to embody a philosophy of preparedness and respect. It acknowledges that technology can fail, but our responsibility does not. For the pilot flying a sophisticated 4-8kg platform, this parachute is not an accessory; it is the silent guardian that allows innovation to take flight with conscience, ensuring that every mission, regardless of its outcome, is conducted with the highest regard for safety. In the new era of drone aviation, the guardian pilot is the one who plans for the unexpected, and this choice is the first, most critical step in that plan.
